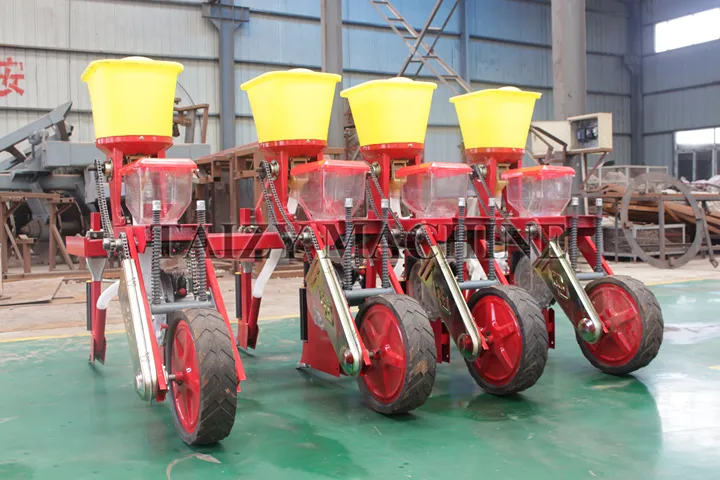

Best Maize Planting Machine for Farmers

The maize planting machine is an agricultural machine specifically designed for planting corn seeds. It can evenly sow corn seeds into the soil according to the set row spacing, plant spacing, and sowing depth. Row spacing is 428- 570 mm, plant spacing is 140- 280 mm, and sowing depth can reach 30- 50 mm.

The maize seed planter is widely used to sow crops such as corn, beans, and peanuts and is an ideal choice for small-, medium-, and large-scale farms. If you are looking for durable, high-quality machines, please contact me.

Features of the maize planting machine

• High-precision seed metering device achieving a seed spacing accuracy (qualified seed index) of 80% or higher.
• Feature a rechargeable power system and support high-speed operation.
• Ensure precise sowing with uniform seed spacing, minimising competition and allowing individual plants to thrive, resulting in robust growth and high yields.
• Equipped with a single-seed guide wheel, enabling precision sowing when selected.
• A large-displacement distribution box and thickened fat-reducing pipe are selected, and the maximum fertiliser application rate per acre can reach 80 kg.

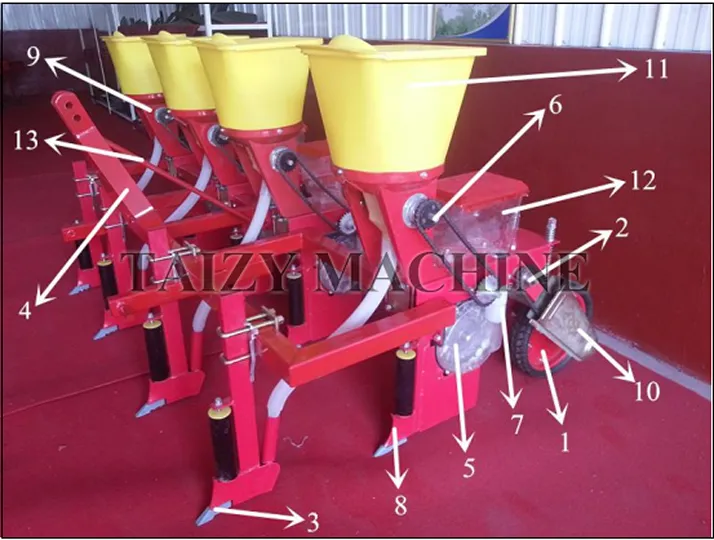

Structure of the corn planter machine

The maize planting machine planter mainly consists of the following components: frame, windproof fertiliser ditch opener, seeding assembly, transmission system, and fertiliser box assembly.

• The wind-resistant fertilising furrow openers are mounted on the frame’s crossbeam using U-bolts and square plates;
• The seeding assemblies are installed at the rear of the frame.
• The fertiliser hopper assemblies are mounted on both sides of the frame’s crossbeam.
• A drive shaft connects the seeding assemblies into an integrated unit, driven by a gearbox mounted on the frame.

① land wheel	② land axle	③ frame	④ fertiliser opener
⑤ planting assembly	⑥ drive system	⑦ grain tube	⑧ trenching column
⑨ fertiliser box holde	⑩ small chain cover	⑪ fertiliser box and box cover	⑫ seed box and box cover
⑬ pull rod

How to operate a maize planting machine?

The corn seeder is easy to operate and can greatly improve planting efficiency when used correctly.

1. Prepare the machine before operation: before planting, check whether the bolts, chains, seed boxes, fertiliser boxes, and transmission parts are firmly installed. Add lubricating oil if necessary, and make sure the tyres and planting components operate normally.

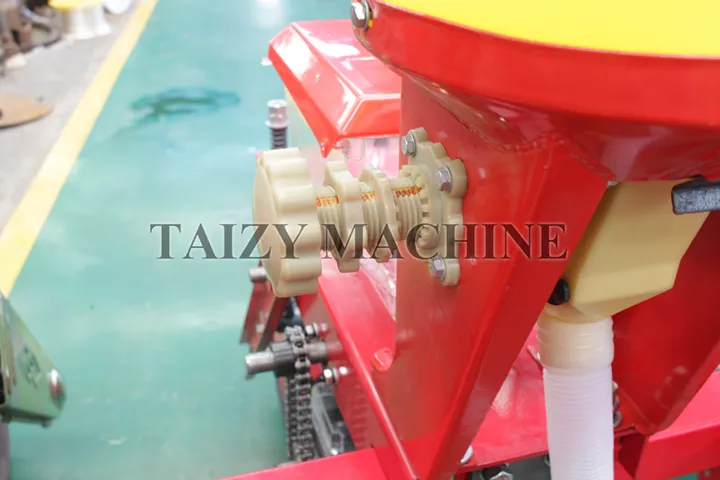

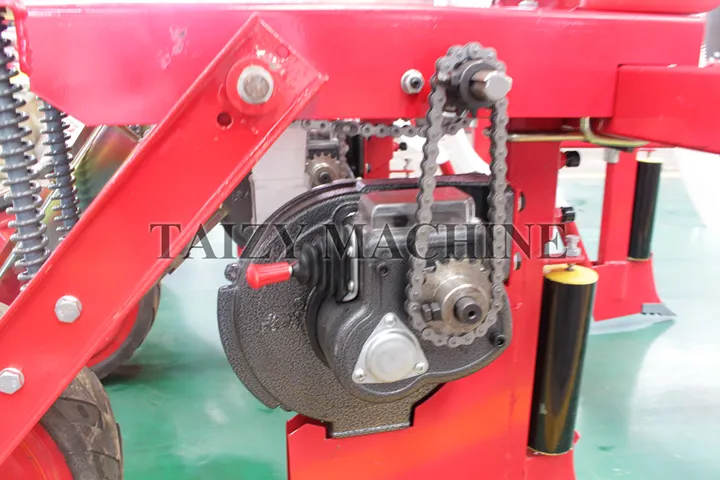

2. Adjust planting parameters: according to the planting requirements, adjust the row spacing, planting depth, seed spacing, and fertiliser amount. Different crops and soil conditions may require different settings.

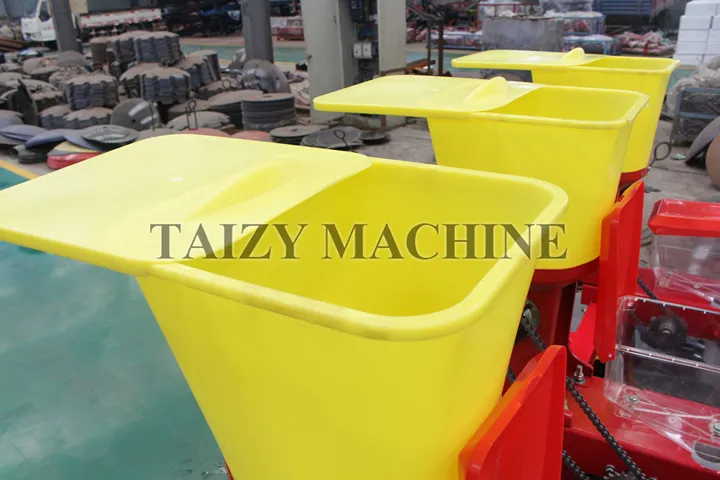

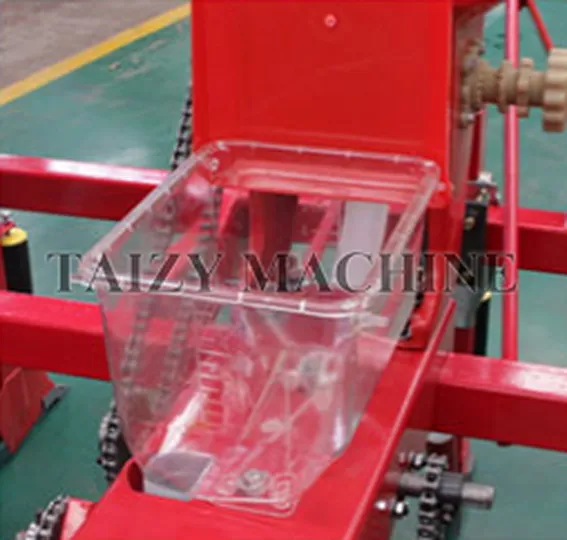

3. Add seeds and fertiliser: put clean and dry maize seeds into the seed box. If the machine supports fertilising, add fertiliser into the fertiliser hopper separately to avoid blockage.
4. Start the corn planter machine: connect the machine to the tractor or prepare the manual pushing system depending on the machine type. Start planting at a stable speed to ensure uniform seed sowing and proper planting depth.
5. Check the planting condition during operation: during operation, regularly observe whether the seeds are discharged evenly and whether the machine works smoothly. Stop the machine immediately if a blockage or abnormal noise occurs.
6. Clean and maintain the machine after use: after planting, clean the remaining seeds, soil, and fertiliser from the machine. Proper cleaning and maintenance can extend the service life of the corn seeder machine and ensure stable performance for future use.

Catalogue of maize planting machine

Modello	2BYSF-2	2BYSF-3	2BYSF-4	2BYSF-5	2BYSF-6	2BYSF-8
row	2	3	4	5	6	8
Distanza tra le file	428-570mm	428-570mm	428-570mm	428-570mm	428-570mm	428-570mm
Distanza di piantagione	140-280mm	140-280mm	140-280mm	140-280mm	140-280mm	140-280mm
Sowing depth	30-50mm	30-50mm	30-50mm	30-50mm	30-50mm	30-50mm
Fertiliser bin capacity	18.75L x2	18.75L x3	18.75L x4	18.75L x5	18.75L x6	18.75L x8
Seed box capacity	8.5 x 2	8.5 x 3	8.5 x 4	8.5 x 5	8.5 x 6	8.5 x 8
Peso	150kg	200 kg	295kg	360kg	425kg	650 kg
Potenza abbinata	12-18hp	15-25hp	25-40hp	40-60hp	50-80hp	75-100hp
Collegamento	i parametri della seminatrice per semi di mais	i parametri della seminatrice per semi di mais	i parametri della seminatrice per semi di mais	i parametri della seminatrice per semi di mais	i parametri della seminatrice per semi di mais	i parametri della seminatrice per semi di mais

Contact us for maize planting machine price and details

The corn seed planter machine is a highly efficient and practical piece of agricultural machinery that helps farmers improve sowing precision, reduce labour intensity, and boost crop production efficiency. In addition, we also provide corn thresher sheller machine and maize grinding machine.

If you are looking for machinery for the complete corn processing workflow and you want to improve agricultural productivity and achieve better planting results, purchasing the high-quality corn machine will be a wise investment.

Please contact us for detailed specifications, operational videos, price quotes, and customised planting solutions.
