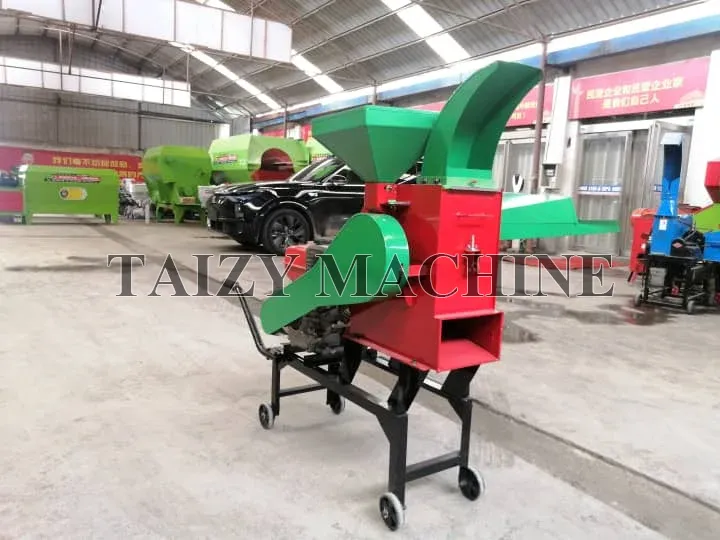

Multi-Functional Straw Shredder Corn Grinder

This multifunctional straw shredder is designed for farmers, small feed processing plants, and livestock breeders, integrating straw chopping, grass crushing, and grain grinding into a single machine, significantly improving feed preparation efficiency.

It is widely used for processing animal feed ingredients such as palm leaves, green fodder, hay, corn stalks, corn cobs, grains, and date palm seeds. Its hourly processing capacity is 300-1200 kg, with various power sources, such as electric, diesel, or gasoline engines.

Advantages of the multi-functional chaff cutter and crusher

• Our corn stalk shredder’s structure is constructed from 4 mm-thick steel and equipped with a 5 mm-thick iron chassis, ensuring durability and structural stability.
• This straw shredder machine uses scissor-type cutting blades, which deliver superior cutting performance and are suitable for tough materials like palm leaves, straw, and hay.
• Taizy multi-blade shredding system is ideal for producing soft grass 3-10cm long. It has 4 blades (8 triangular cutting blades per blade), each blade is 7 cm long and 2 mm thick, made of stainless steel.
• In addition, its hammer mill system consists of 16 hardened hammers, each with a 2 mm thick, suitable for crushing corn kernels, date kernels, corn cobs, and other grains.

Two types of agricultural chaff cutters

Our best-selling model is the 9ZF 500B five-port straw shredder. It has multiple outlets, including three discharge ports (high, medium, and low) and two feed inlets. It is suitable not only for collecting grain powder but also for shredding and high-throw loading of forage materials.

This 9ZF 500A four-port corn stalk crusher is simpler and also offers the dual function of grain crushing and forage chopping. We will explain the differences and specifications of both models in detail below. If you are unsure which machine is more suitable for you, please contact us for assistance.

Structure of our corn cob crusher

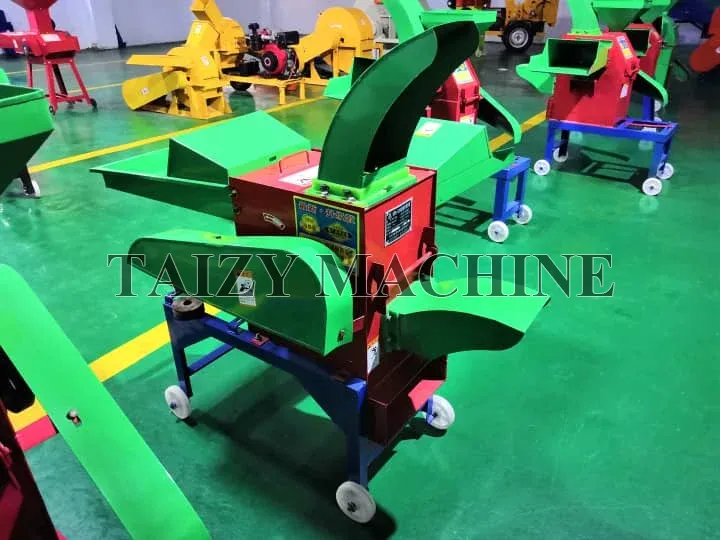

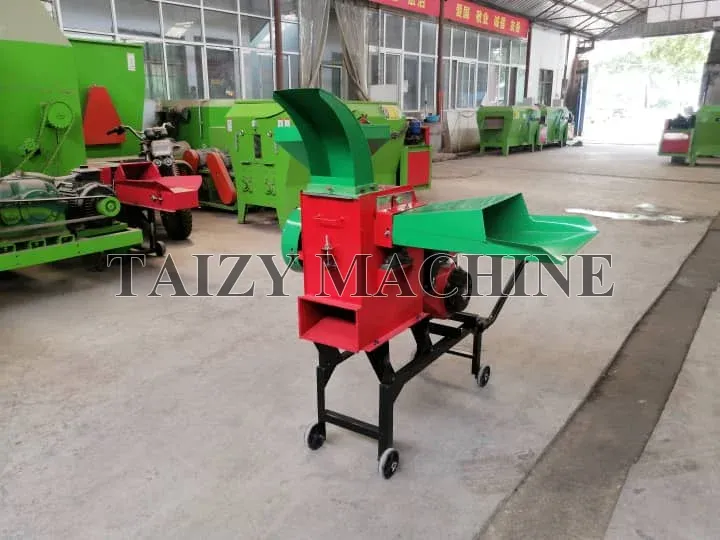

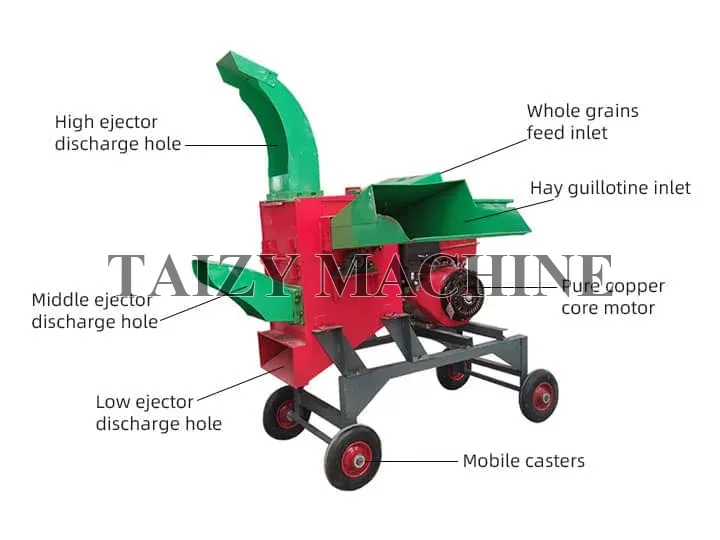

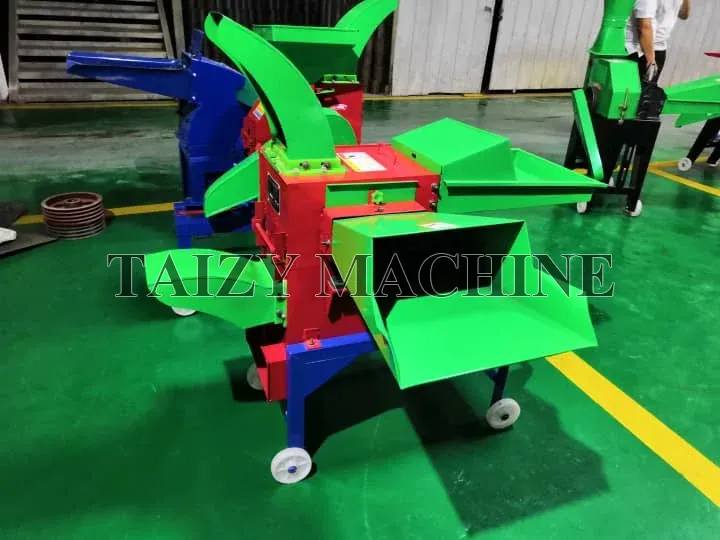

9ZF 500B five-ports straw shredder

This five-port machine integrates multiple functions, including hay cutting, hay chopping, crushing, grinding, and feeding. It has two feed inlets and three discharge outlets, each with a different function.

The hay guillotine inlet is for feeding long materials such as hay, corn stalks, and palm leaves. Its spacious design allows for rapid feeding. The whole-grains feed inlet is specifically for feeding granular materials such as corn and date pits, facilitating hammer milling in the internal crushing chamber.

There are three different discharge ports: high, middle, and low.

• The high port is for discharging longer pieces of feed or throwing feed to a higher position.
• The middle port is for outputting medium-length grass and soft feed.
• The low port discharges materials that have been crushed into small particles or fine powder.

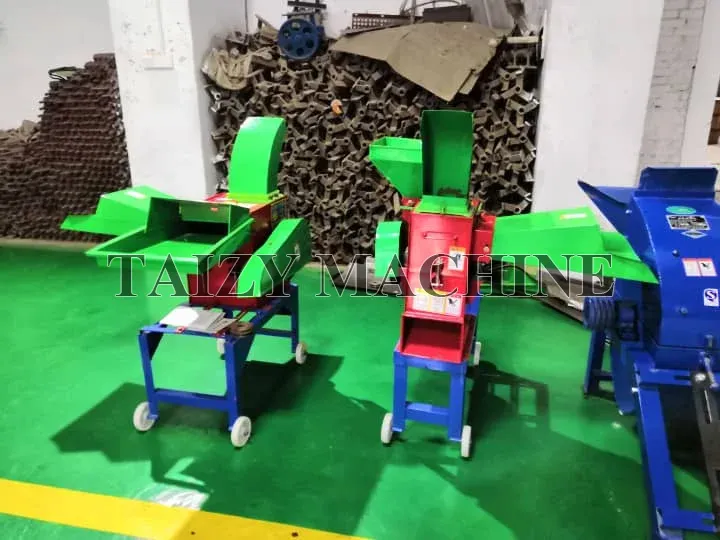

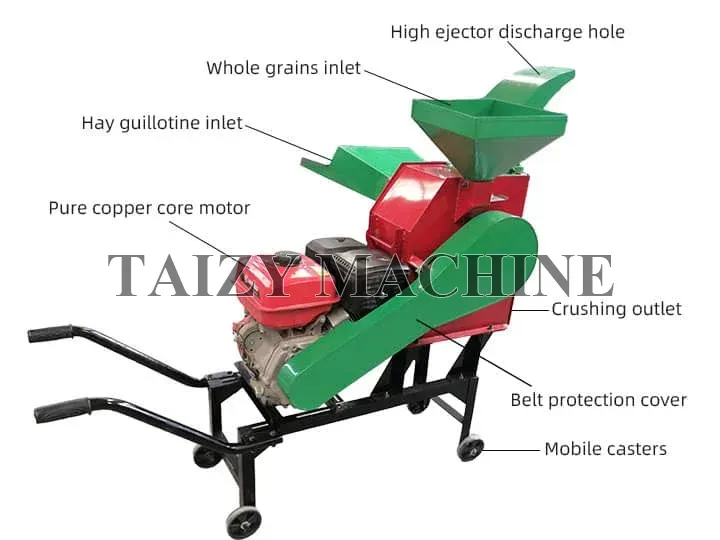

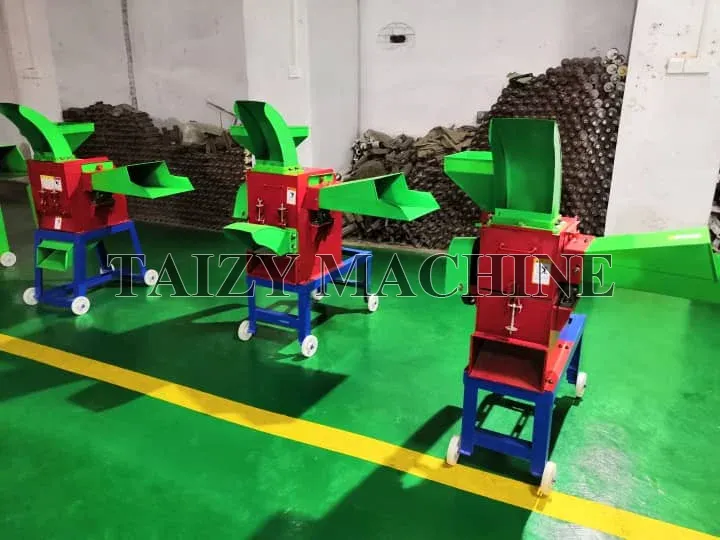

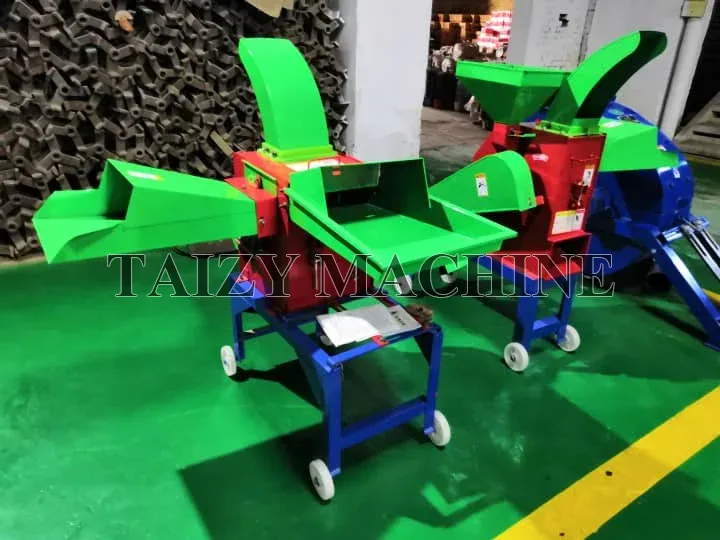

9ZF 500A four-ports corn stalk crusher

This four-port mill functions similarly to the five-port mill, but it lacks a central discharge port, resulting in a more compact structure suitable for ordinary farms and feed mills. It has two feed inlets and two discharge outlets to meet different grinding needs.

Parameters of Taizy small forage chopper

Model	9ZF-500A	9ZF-500B
Power	3kw motor, 170F gasoline engine, or 8hp diesel engine	3kw motor, 170F gasoline engine, or 8hp diesel engine
Capacity	600-800kg/h	800-1200kg/h
Size	1120*980*1190mm	1220*1070*1190mm
Weight	85kg	95kg

Applications of the multi-functional straw shredder

As a multi-functional forage crusher and corn mill, its applications are very broad. So it has been applied in many fields.

It can be used not only in livestock farms for feed processing of cattle, sheep, goats, camels, and poultry, but also for crushing and recycling into agricultural processing, producing crushed corn, crushed date pits, crushed corn cobs, and mixed feed.

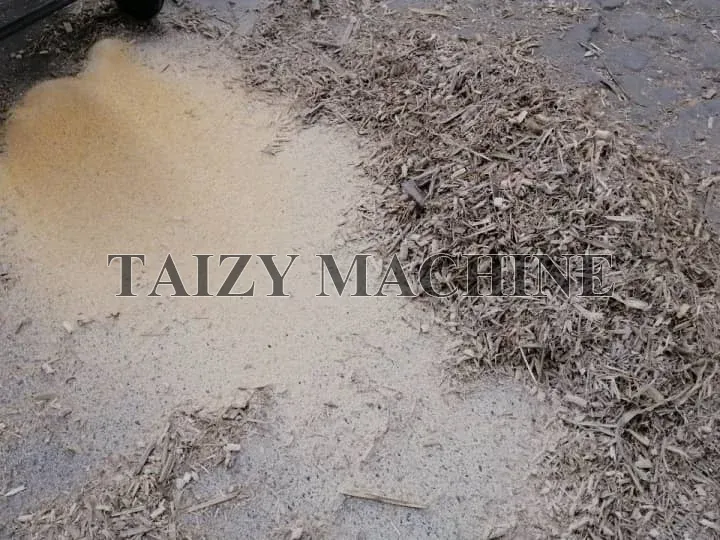

Its finished products come in various sizes and shapes: 3-5 cm chopped straw suitable for cattle and sheep forage, 5-15 mm coarse hay powder often used in mixed feed, and other grain products ideal for poultry, pigs, goats, as well as fish, rabbits, and young livestock.

30 sets of straw shredders were sent to a livestock farm in Dubai

This year, a large-scale livestock farming client from Dubai, UAE, ordered 30 sets of corn stalk threshers. He runs an agricultural company primarily raising cattle, sheep, and camels, and due to the recent expansion of his ranch, his demand for feed processing equipment has increased rapidly.

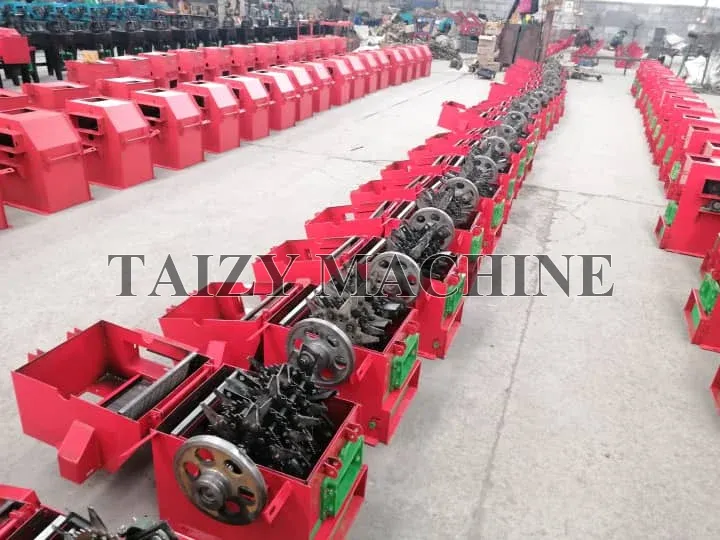

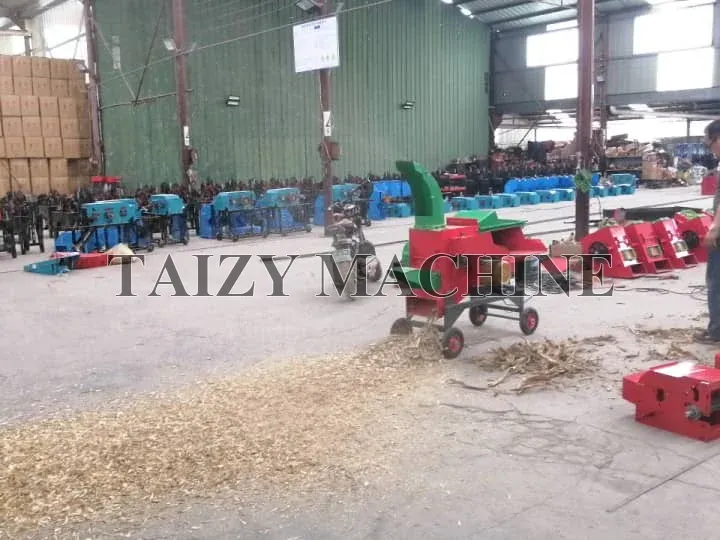

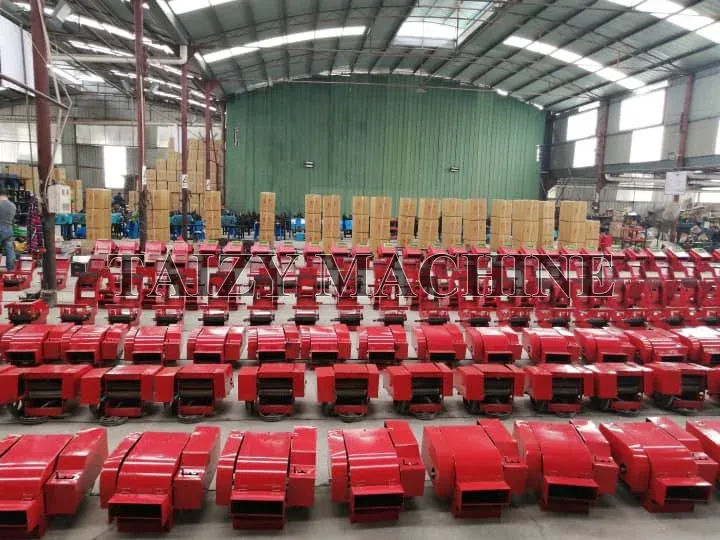

After multiple communications and video confirmations, this client ultimately decided to purchase 30 9ZF-500B straw shredders at one time. When the machines were completed, we conducted a detailed test run to ensure they were running properly. Our customer was very satisfied with the results and immediately paid the full deposit. We then arranged for shipment right away.

Our Dubai customer received the multifunctional silage cutters and immediately put them into use, which has achieved excellent results. “If the machine runs smoothly next year, we plan to order another batch to expand production,” he told me about his future projects and said he wants to work with us.

Contact us for the latest price on this machine. Besides it, we also provide other sliage cutters:
