Time and Labor Saving Fully Automatic Silage Bale Wrapper
| Model | 9YDB-60 |
| Capacity | 50-75bales/h |
| Bale weight | 75-110kg |
| Bale size | Φ600*520mm |
| Number of coating layers | can be adjusted |
You can now ask our project managers for technical details
Our silage bale wrapper is an agricultural machine designed to compress silage into round bales and seal them. The silage baler and wrapper machine is fully automatic and it can produce 50-75 bundles per hour. Each bundle weighs 75-110 kg.
Silage bale wrappers are mainly used to process various crop straws (such as corn straw, sorghum straw, and wheat straw), forage, and by-products such as lees. If you are interested, please contact me for pricing and other details.
Core Features of Our Silage Baler
Our silage bale wrapper is designed for stable performance and easy operation.

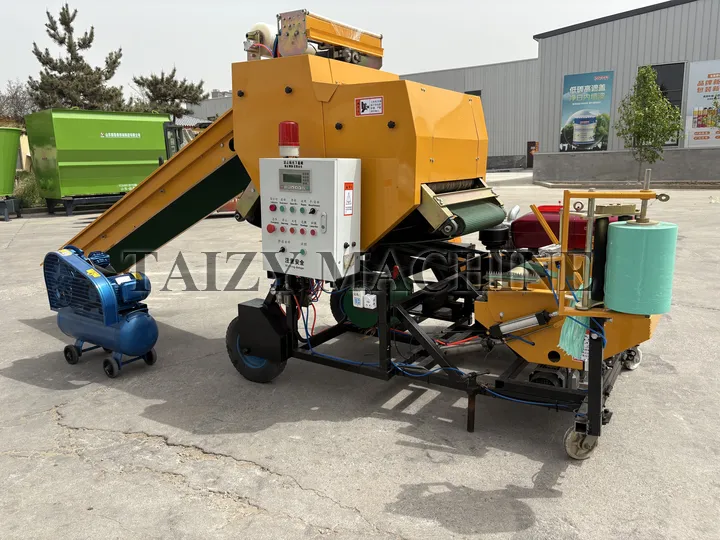

- Automated and efficient: Equipped with a PLC panel, it can automatically feed, cut, and unbundle film. It can produce 50-75 bundles per hour, each bundle measuring 60×52cm and weighing 75-110kg.
- Easy to operate: Operators can complete all processes in one go simply by starting the machine through the control panel, without the need for complicated manual intervention.
- Adjustable wrapping layers: The number of wrapping layers can be flexibly set directly via the PLC electrical control cabinet; the machine will automatically complete the subsequent wrapping and film cutting processes.
- Wide selection of binding materials. We provide three options: transparent stretch film, plastic rope, and yarn rope. All three materials are compatible with this machine and can be interchanged at any time.
- Free stroller: We will give away a free trolley to customers.
- Color Advantages: The body of our machine is yellow, and it is loved by many people.
Application of Our Silage Baler Machine
- Our machines can be used in large and medium-sized farms, feed processing enterprises, or teams that provide collection, baling, and wrapping services for surrounding farmers.
- They can be used to process green forage, corn stalks, wheat straw, rice straw, and similar materials.
Parameters of Taizy Silage Wrapper Film Baler
To help customers evaluate equipment performance and operational efficiency, we have summarized the key technical parameters of this series of silage bale wrapper as follows.
| Model | 9YDB-60 | 9YDB-60 |
| Driving power | electric motor | diesel fuel |
| Capacity | 50-75bales/h | 50-75bales/h |
| Bale weight | 75-110kg | 75-110kg |
| Bale size | Φ600*520mm | Φ600*520mm |
| Bundling material | pasture film | pasture film |
| Number of coating layers | can be adjusted | can be adjusted |
| Application | forage, corn stalks, wheat straw, rice straw, etc. | forage, corn stalks, wheat straw, rice straw, etc. |
| Machine size | 4240*1370*1820mm | 4400*1008*1850mm |
Our round bale wrapper is driven by an electric motor or a diesel engine. There are only slight differences in size. The weight and size of hay bales vary depending on the density, type, and moisture content of the material.
Three Alternative Strapping Materials for Bundling and Wrapping Machines
We offer three reliable wrapping options for your silage bale wrapper:

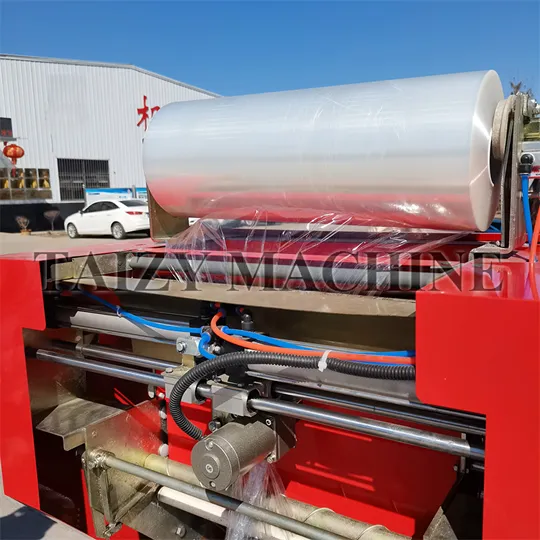

- Transparent stretch film: Light, cost‑effective, and provides excellent air isolation.

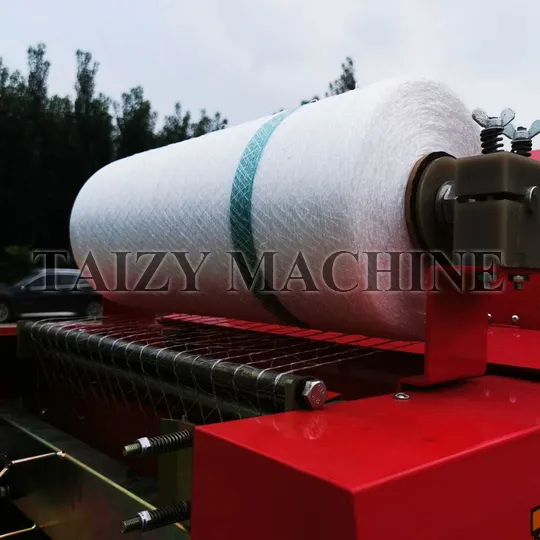

- Plastic rope: Durable, lightweight and affordable for general use.

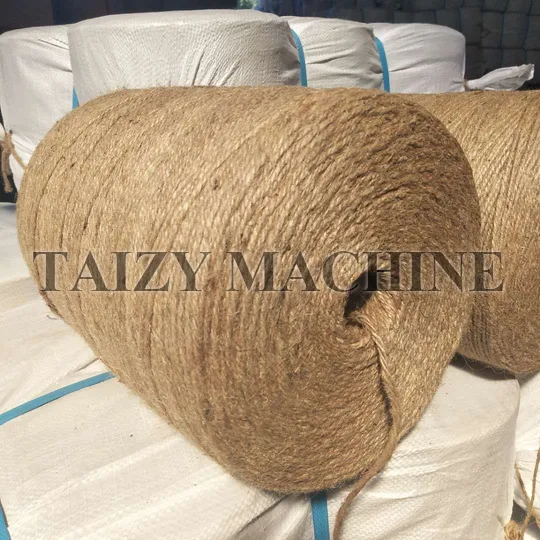

- Yarn rope: Strong binding force, but heavier and more expensive.
How Does a Bale Wrapper Work?
The automatic working process of a silage bale wrapper is simple and efficient:
- Silage is fed into the machine, and the conveyor belt continuously pushes the forage forward.
- Inside the baling chamber, silage is rolled and compressed into dense cylindrical bales.
- When the bale reaches the preset size, an indicator light turns on, and feeding stops.
- The machine automatically wraps the formed bale with multiple layers of silage film.
- The finished bale is smoothly ejected, and the film is cut automatically by a film cutter.
- The final product is a well‑sealed, airtight silage bale ready for storage.
The silage bale-making machine achieves the compression, shaping, and sealing of straw or forage through a continuous operational mode of “first baling, then wrapping.”
How much is a Taizy silage bale wrapper?
The silage round baler is key equipment in agricultural mechanisation for achieving efficient silage of forage, and its price is usually different. The following are several key factors that influence their cost:
- Automation: Bundling and wrapping machine for a fully automatic type. The higher the level of automation, the higher the price.
- Production efficiency: High efficiency means more powerful motors and more precise mechanical structures, which naturally lead to higher equipment prices.
- Core configuration and materials: The body material, material thickness, and power system all affect the price.

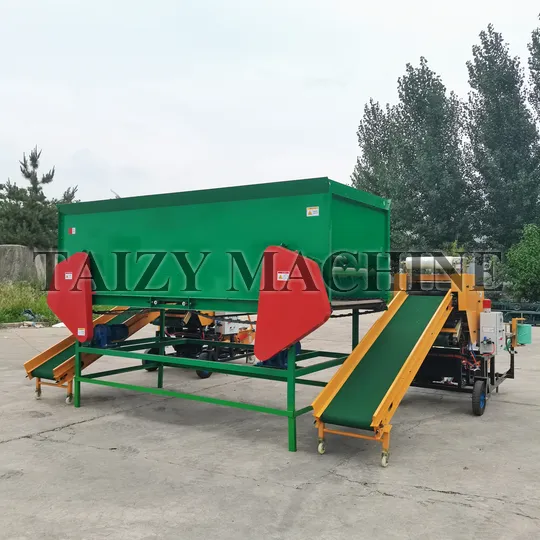

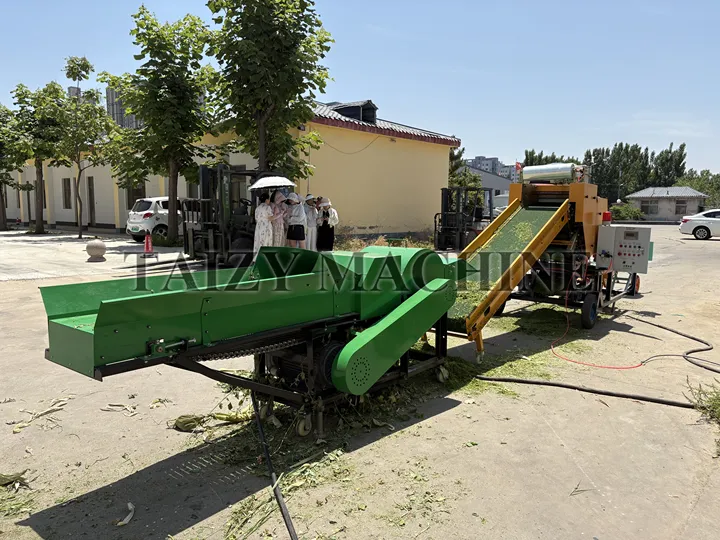

- Supporting equipment: Round bales can be perfectly integrated with chaff cutters or batch bins to maximise production efficiency; however, the price will be higher if purchased as a set.
FAQ of Taizy Silage Round Baler
What is a round baler and wrapper?
The silage baling and wrapping machine is an agricultural machine that integrates compaction, baling, and sealing wrapping. It is mainly used to compress fresh crop straw or hay into high-density bales and wrap them.
What are the common power types for baler-wrappers?
We provide two models: electric motor drive and diesel drive.
Can the binding material be replaced?
Yes, they can be replaced. We offer three options: transparent film, yarn rope and plastic net.
Purchase Silage Bale Processor
If you need high‑quality and cost‑effective products, you can choose us. Our products feature stable performance, long service life and reasonable price, with strong practicability.
We have complete supply channels and strict quality control. Whether you need small orders or bulk purchases, we can meet your needs. Contact us now to get the latest price and professional service.
