Máquina Descascar Grãos de Milho Multifuncional

Esse versatile maize thresher machine is normally used to shell corn cobs into corn kernels. What’s more, soybeans, rice, and millet can also be threshed. The threshing capacity of this machinery depends on the product. For example, corn can be threshed at a rate of 2-4 tons per hour, sorghum and millet at 1-2 tons per hour, and soybeans at 0.5-0.8 tons per hour.

We provide three powers of the maize thresher machine: diesel engine, PTO, and electric motor to meet your needs. The high-efficiency power not only saves labor but also improves the threshing rate of over 98% which significantly reduces losses and material consumption.

Highlights of the corn thresher

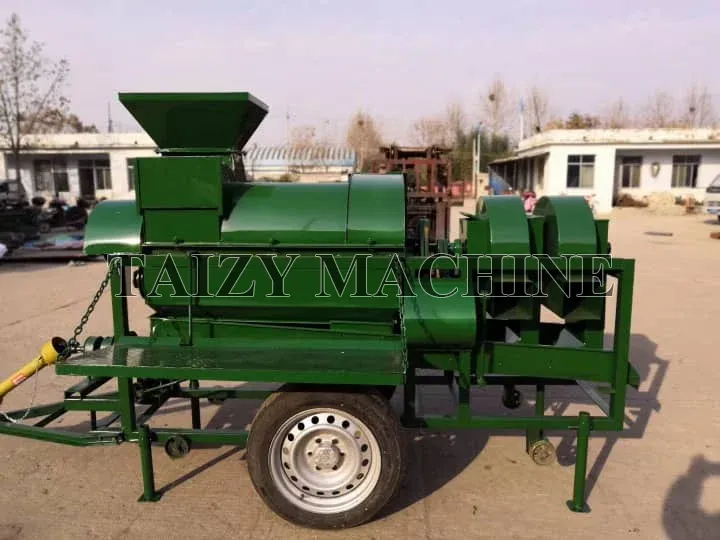

1. With big tires and a strong bottom frame, it is easy to move around. So the maize thresher machine is more flexible to suit any work situation.
2. It can be applied to thresh a wide range of grains, such as maize, rice, wheat, soybeans, etc. Therefore, you can change the sieves to process different sizes of crops.
3. This machine has two big fans, which are different from other types of corn sheller machines. These two pieces of equipment can separate dust and waste from the corn kernels and other products. And this is one of the reasons why this maize thresher machine has an over 98% threshing rate.

The detailed parameters of grain threshing machine

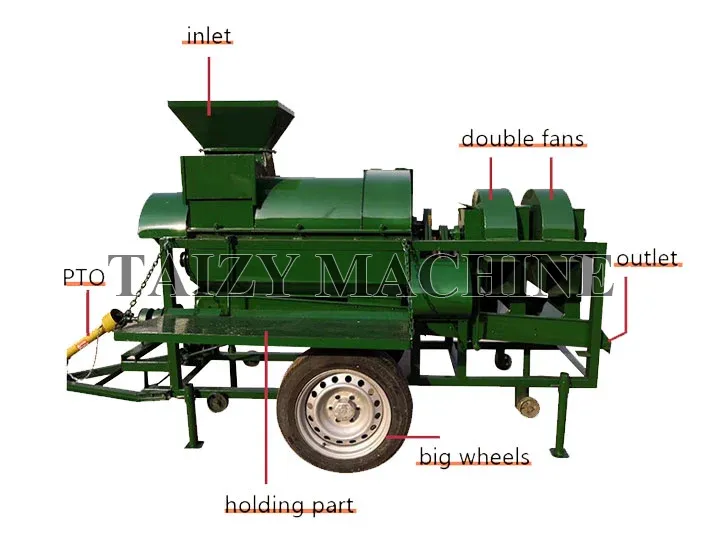

Overview of the grain sheller machine structure

The whole structure of this mobile grain thresher is simple. Inlet, double fans, outlet, big wheels, holding part, and PTO are the main parts of it.

• O large wheels are designed for easy mobility. This part allows you to store it in a warehouse when you don’t want to use it. Better than the fixed one, you can keep it out of the wind and rain.
• Equipped with double fans, it supports a stronger wind system to make the final products cleaner.
• Inlet is shaped as a funnel to let raw materials enter fluently, and the outlet‘s slope design makes products easier for products to be collected by grain pockets.
• PTO is a means of power that can connect to a tractor to generate energy. So the design of this part is to provide a way of providing power for some people who need it.
• Holding part is a support device to keep the balance of this maize thresher machine when it is working.

How to use this maize thresher machine？

The simple structure makes the operation easier. Here are some steps to run it.

• Step 1: Before using the machine, check the energy supply and some basic systems to make sure that the stand is flat and stable for the next procedure.
• Step 2: Turn on the energy system and don’t pour materials into it at first.
• Step 3: After it runs correctly, put the corns into the hopper.
• Step 4: Then the cops will separate from corn kernels through the work of the threshing system. And the product will come out of the outlet.

The final products and their application

The main purpose of the maize shelling machine is to shell corn kernels and process other grains without destroying their integrity. The shelled crop: corn kernels, millets, soybeans, and rice can be sold as goods to the supermarket or agricultural market.

It can also be used as raw material to make feed, grits, and flour. These means can improve the value of the product to have more economic benefits.

A successful exporting case about the maize threshing machine in Ghana

We have established a good cooperation with a client in Ghana. There was a big harvest for his farm, so he needed to process his crops to save space in his warehouse and to facilitate the subsequent sale and other corresponding events.

He planted corn and soybeans, so he needed a multi-functional crop threshing machine to thresh them for storing and selling. With our help, he finally chose a machine that met his needs: a 5TD-1000 multi-functional maize thresher machine.

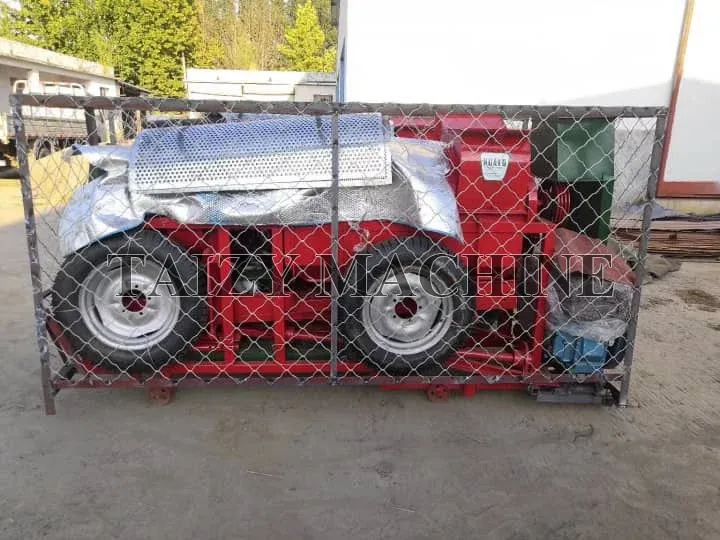

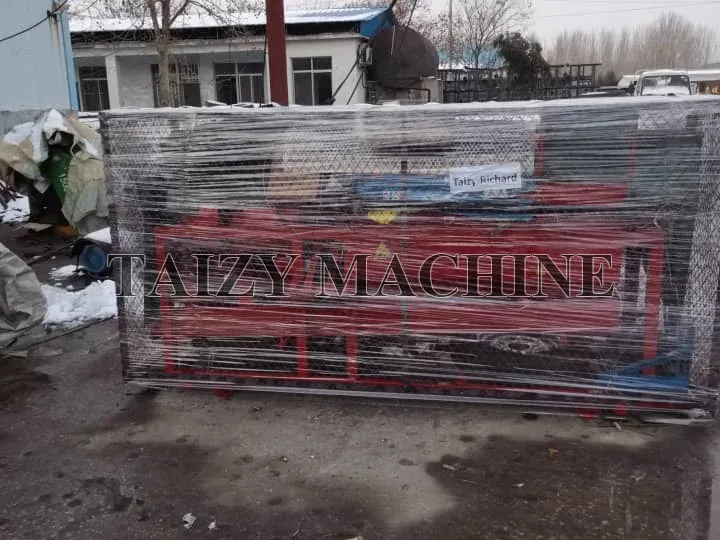

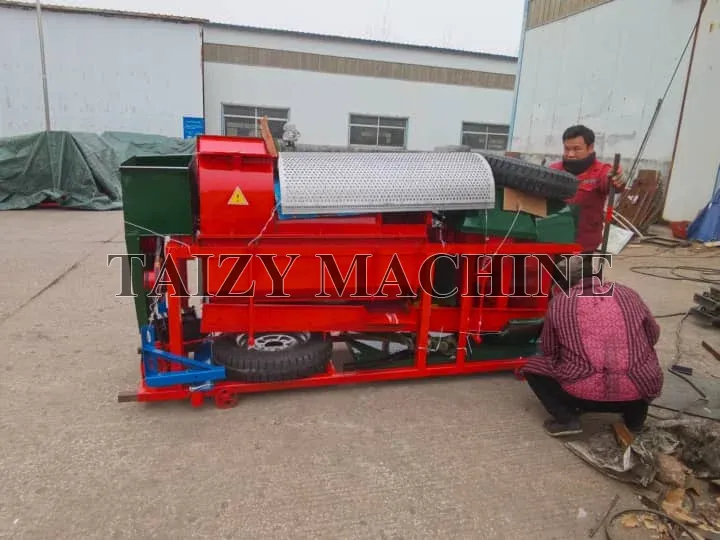

The whole process was fluent. We packed the machine and went through a period of shipping. Our client couldn’t wait to install and use it as soon as he received the equipment.

“It’s perfect, there is no doubt that I love it very much. Thanks, Taizy, my friends who help me solve my harvest problems. “

It’s our honor that our machine can help some people meet their agricultural needs, and this is also Taizy’s belief- to make the world better through developing agricultural machinery.

In addition to this maize thresher machine, we also have other types of corn machines, including whole corn processing. For example, the plantador manual de sementes de milho for seeding, the máquina colheitadeira de milho for harvesting, and even the maize grits making machine for grinding.

Contact us to gain more information and product news！
