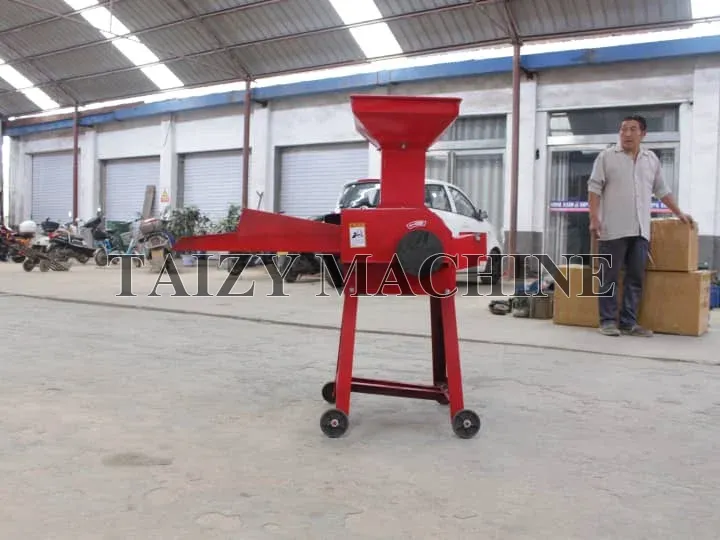

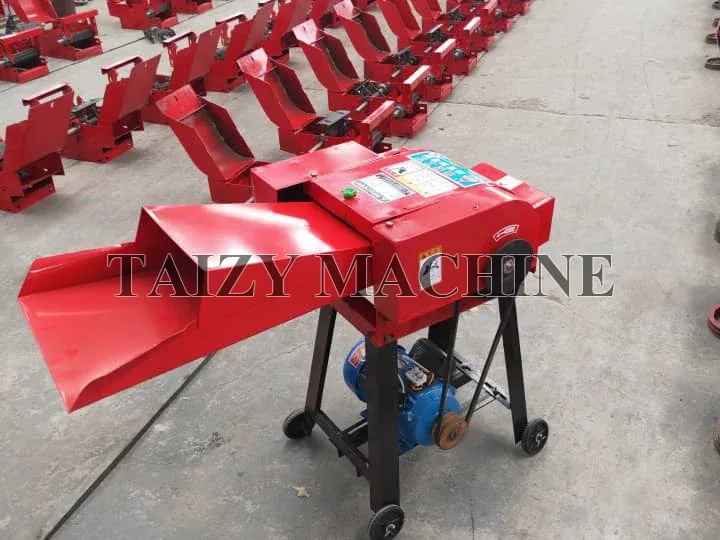

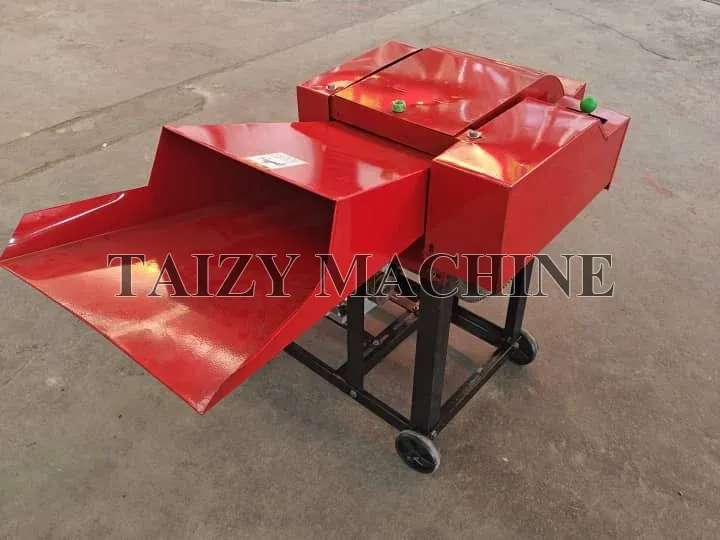

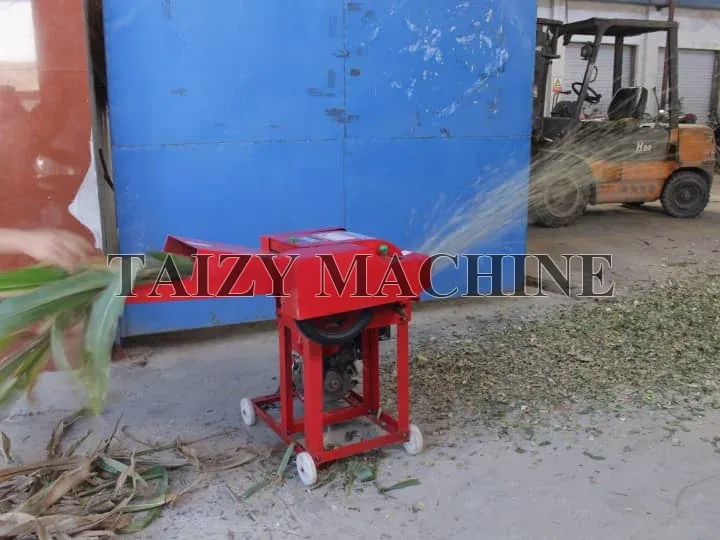

Small Chaff Cutter Machine For Cattle Feed Preparation

Taizy small chaff cutter machine is used to cut various grain stalks for cattle, sheep, and other poultry raising. The machine is made of high-quality steel, making it not only durable but also safe and easy to clean.

Multiple power sources are available: electric motors, diesel engines, and gasoline engines. Its capacity is 400 kg/h, suitable for small and medium-sized livestock farms. We offer a variety of customization services, and additional discounts are also available for bulk purchases.

Advantages of the Taizy chaff cutter machine

• The machine has a small footprint of only 1075*510*850 mm, making it suitable for mobile and single-person operation.
• Taizy chaff cutter machine can be customized with motor power, color, nameplate, and packaging as needed.
• Our machines have CE certification, meet international quality standards, which not only guarantee quality but also provide comprehensive after-sales service.

Structure of this forage chopper

The main components of this machine include: feed inlet, transmission mechanism, power system, cutter shaft and blade assembly, gear adjustment mechanism, and discharge outlet.

1. The feed inlet uses an automatic feeding system, avoiding direct manual feeding to improve safety and efficiency.
2. The motor and cutting shaft are connected by belt, chain, or gear transmission to achieve speed reduction matching.

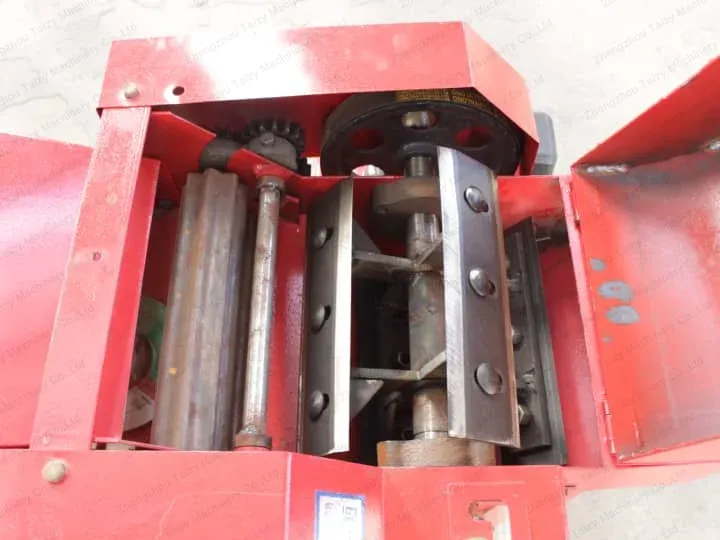

3. The chaff cutter machine uses thickened, updated manganese steel blades, which are wear-resistant and have a long service life.
4. There is an external handle that allows manual adjustment of the gap between the blade and the feed to control the cutting length and the size of the final grass particles.

Technical parameters and model comparison of chaff cutter machine

Model	9Z-0.4	9Z-0.4A
Power	2.2kw	2.2kw
Rotating speed	2800r/min	2800r/min
Chopping size	7/20mm	7/20mm
Blades quantity	4/6pcs	4/6pcs
Overall dimension	1075*510*850mm	1075*510*1100mm
Packing size	600*500*400mm	600*500*400mm
Weight	48kg	52kg
Capacity	400-500kg/h	400-800kg/h

The standard width of the crushing chamber is fixed at 240 mm. But the width of both the crushing chamber and the feed hopper varies depending on the number of blades:

• 4-blade models: Crushing chamber width approximately 24 cm, feed hopper width approximately 23 cm, and 40 cm.
• 6-blade models: Crushing chamber width approximately 31 cm, feed hopper width approximately 30 c,m and 41 cm.

Usage and maintenance recommendations for the forage chopper

Usage instructions for the silage cutter

1. Before using this chaff cutter machine, check if all bolts are tight, the blade is sharp, and the belt tension is appropriate.
2. Feed silage and other materials evenly and continuously. Do not feed excessive amounts or mix in hard objects such as metal or stones.
3. The cutting length can be adjusted to change the gear or blade gap only when the machine is stopped.

Maintenance recommendations for the chaff cutter

1. After using, clean the machine cavity promptly to prevent rust and blockage.
2. If the power source is an electric motor, keep it dry and well-ventilated to avoid operating it in rainy or high-humidity environments.
3. Regularly check the wear of the blades and belts, sharpen or replace them in time to extend the service life of the machine.

Successful case: Ugandan agricultural project purchased 250 units of chaff cutter machines

Last year, Taizy collaborated with clients to complete an agricultural project in Uganda. This project will be used for the development of local small- and medium-sized livestock farming, supporting farmer cooperatives and regional agricultural modernization.

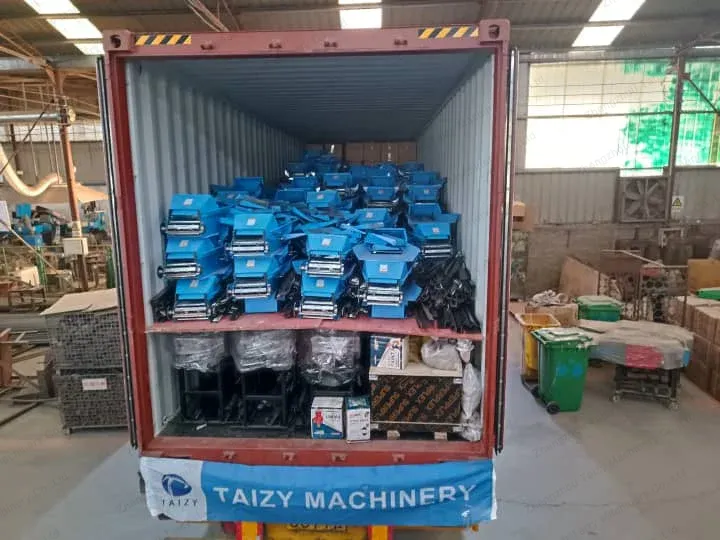

After the project was decided, our customer personally visited our factory in China and tested the chaff cutter machines. Finally, we confirm the order for 250 units of 9ZR and other corresponding spare parts, which would be packaged and shipped in a full container to Kampala, the capital of Uganda.

What can Taizy offer you?

1. We have our own factory, ensuring high product quality, transparent pricing, and support for export packaging.
2. Taizy has over 40 years of experience in machinery manufacturing and over 10 years in international exporting. We not only have complete production lines to ensure long-term supply, but also provide excellent freight services.
3. After production, each machine undergoes operational testing to ensure that its quality meets the requirements for large-scale procurement.
4. We have rich experience in cooperating with large-scale projects, including Google Ads and national government projects.

Contact us for the latest quote!

If you want to find a reliable agricultural manufacturer for your business or project, Taizy provides the most genuine prices, the most comprehensive services, and the best guarantees. If you have the same needs, don’t hesitate to contact us!

If you are a self-employed individual looking for a silage harvester that combines harvesting and crushing, click this product link: Corn Silage Harvester.
