Forage Chopper For Silage Stalks Cutting

Taizy forage chopper can cut the stalks of crops such as beans, corn, rice, wheat, and alfalfa for use as feed for animals like cattle, horses, sheep, geese, chickens, and ducks.

It can be driven by a 2.2 kW electric motor, or by a diesel or gasoline engine with three settings—long, medium, and short—to cut the stalks to different lengths according to the different feeding habits of various animals.

What are the highlights of this forage chopper?

• Our silage chaff cutter has a wide range of applications. It can chop both dry and wet stalks into lengths of 5mm, 11mm, and 15mm for different requirements of livestock feeding.
• After the update, our forage chopper can now cut 1.2t to 10t of silage per hour, which can not only support small and medium-sized farms, but can also make large-scale silage processing.

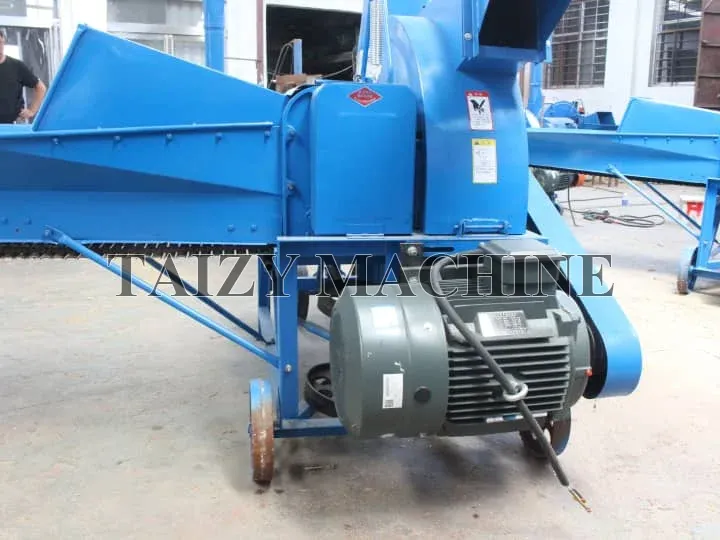

• Considering regional differences in energy supply, we offer three different energy supply methods: electric motor, diesel engine, and tractor(PTO).
• We support a variety of customization needs, including custom wheels, custom conveyor belts, and custom feeding methods etc.

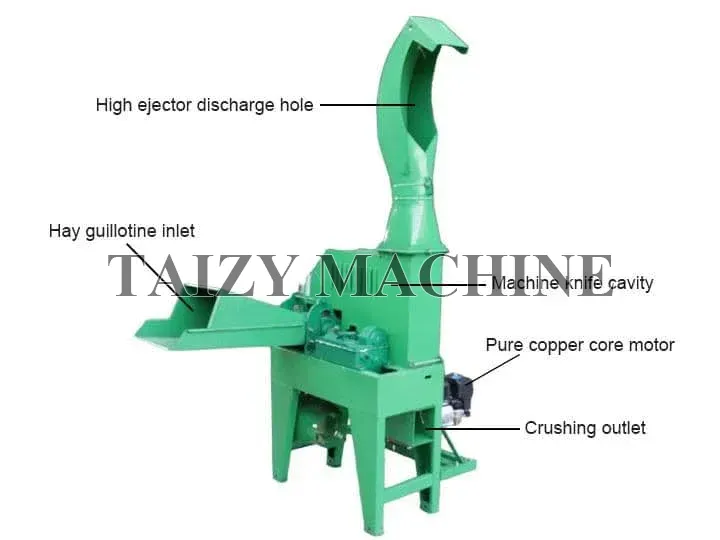

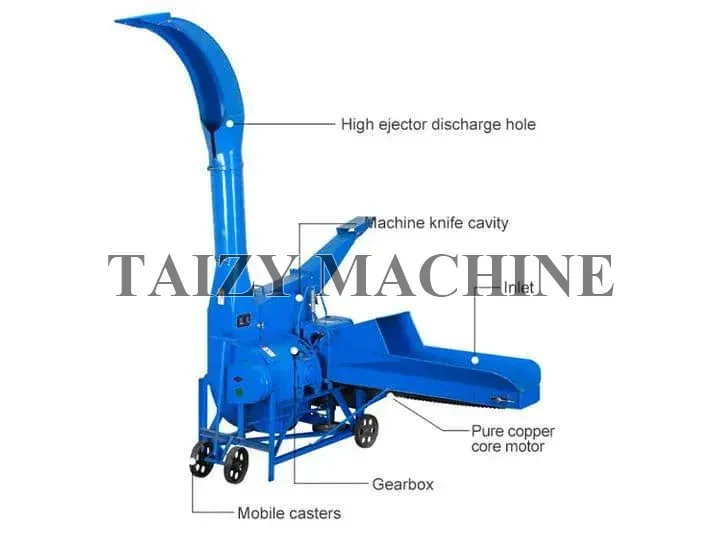

Chaff cutter machine’s structure

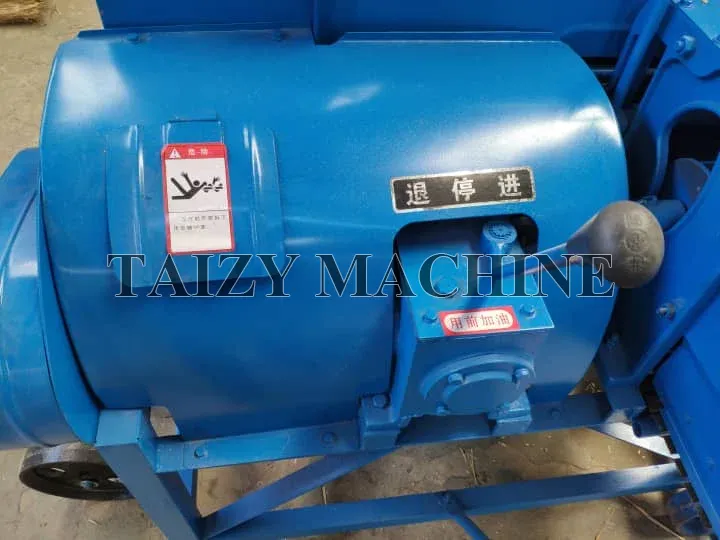

The machine has a simple structure, mainly consisting of a feed inlet, a knife cavity, the power system, adjusting gears, and a discharge outlet.

Large machines typically have a conveyor belt installed at the feed inlet, as well as a support frame for easy connection to a tractor. If you have special requirements, we can also customize them to your needs, including colors, tires, etc.

Models and parameters of the grass chaff cutter machine

We have various models for different cutting capacities. The machines are divided into two main categories: medium-sized electric chaff cutters and large-sized forage chopper machines.

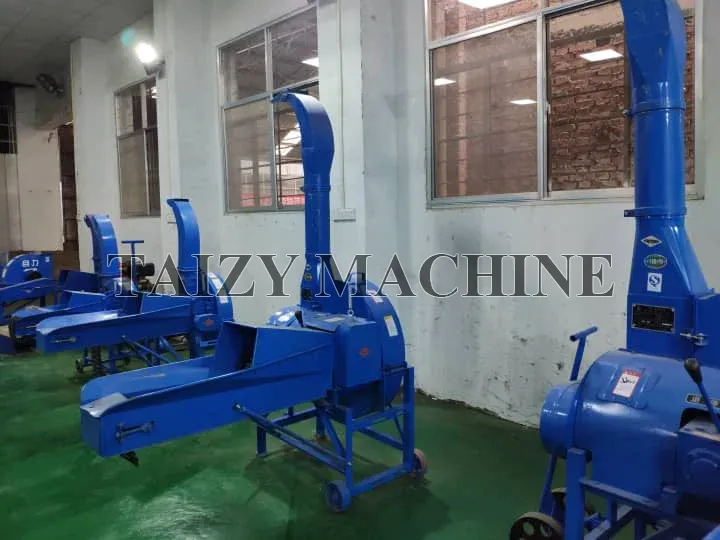

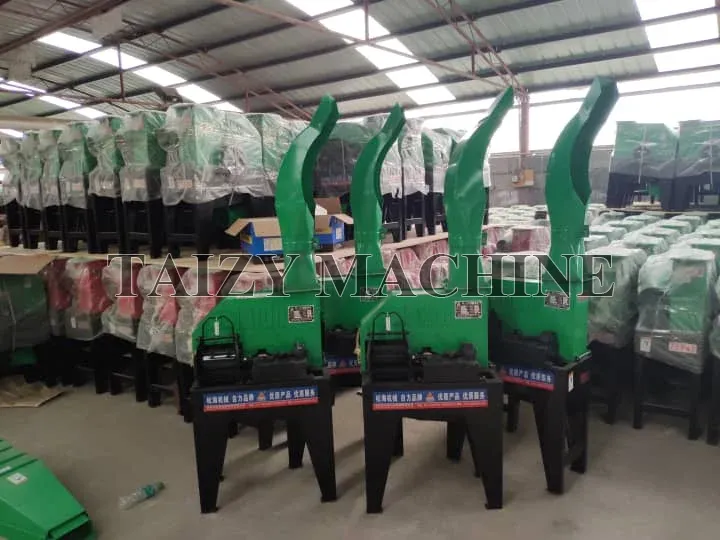

1. Medium-sized electric chaff cutter

Model	9Z-1.2	9Z-1.5	9Z-1.8
Structure type	Disk type	Disk type	Disk type
Power	2.2-3kw motor, 8hp diesel engine, 170F gasoline	2.2-3kw motor, 8hp diesel engine, 170F gasoline	2.2-3kw motor, 8hp diesel engine, 170F gasoline
Weight	80kg	90kg	100kg
Dimension	660*995*1840mm	770*1010*1870mm	800*1010*1900mm
Capacity	1200kg/h	1500kg/h	1800kg/h
Speed of main shaft	950r/min	950r/min	950r/min
Rotor diameter	470mm	510mm	560mm
Blades quantity	6pcs	6pcs	6pcs
Blades shape	rectangle	rectangle	rectangle
Speed of feeding roller	360r/min	360r/min	360r/min
Feeding mode	Manual	Manual	Manual
Chopping size	5mm,11mm,15mm	5mm,11mm,15mm	5mm,11mm,15mm
Feeding inlet width	170mm	180mm	220mm

This lightweight hay shredder is compact and lightweight, and its manual feeding method makes it suitable for small/medium-sized family farms or users with limited budgets and space.

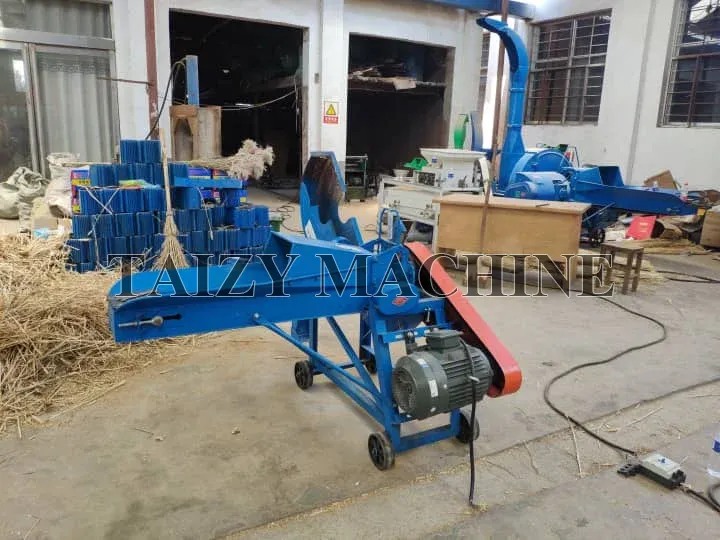

2. Large-sized forage chopper machine

Model	9Z-2A	9Z-3A	9Z-4.5A	9Z-6.5A	9Z-10A
Structure type	Disk type	Disk type	Disk type	Disk type	Disk type
Power	3–4kW	3.5–5.5kW	5.5kW	7.5kW	15kW
Diesel engine	8–12hp	8–12hp	12–15hp	15–20hp	25–30hp
Weight	110kg	180kg	300kg	420kg	800kg
Overall dimension	1050*1000*1470mm	1480*1120*1735mm	1737*1575*2315mm	2147*1600*2756mm	2580*2200*2930mm
Capacity	2t/h	3t/h	3–4t/h	5t/h	10t/h
Speed of main shaft	1690rpm	1290rpm	740rpm	650rpm	500rpm
Rotor diameter	550mm	615mm	740mm	1000mm	1270mm
Blades quantity	6pcs	3+4pcs	4pcs	6pcs	3pcs
Blades shape	Sector	Sector	Arc	Arc	Arc
Speed of feeding roller	360rpm	276rpm	207rpm	260rpm	72rpm
Feeding mode	Manual	Automatic	Automatic	Automatic	Automatic
Chopping size	15/35mm	10/35mm	11/22/34/44mm	12/18/25/35mm	12/18/25/35mm
Feeding inlet width	160mm	170mm	220mm	260mm	400mm

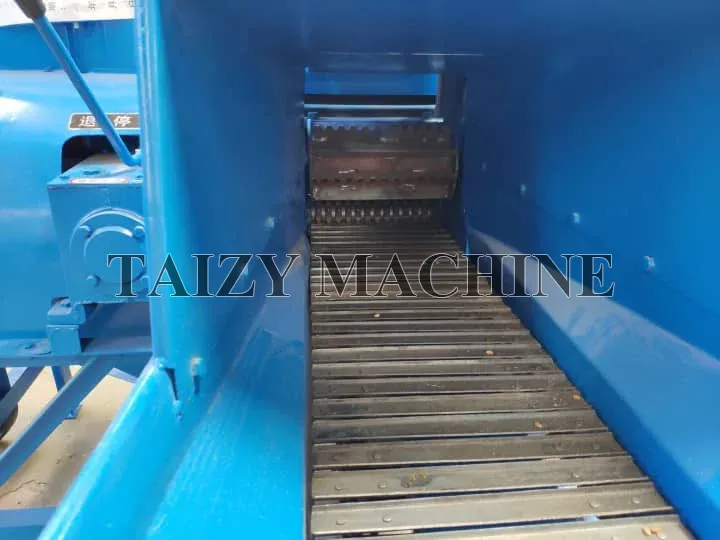

Except for the 2A model, which is manual, all other medium to large-sized forage shredders are equipped with conveyor belts for automatic feeding. They can process coarse straw, long-fiber plants, and heavy forage, making them suitable for professional farms, cooperatives, and large-scale feed mills.

FAQ of Taizy forage chopper

Agricultural chaff cutter selection guide

How to improve the efficiency of using a forage chopper?

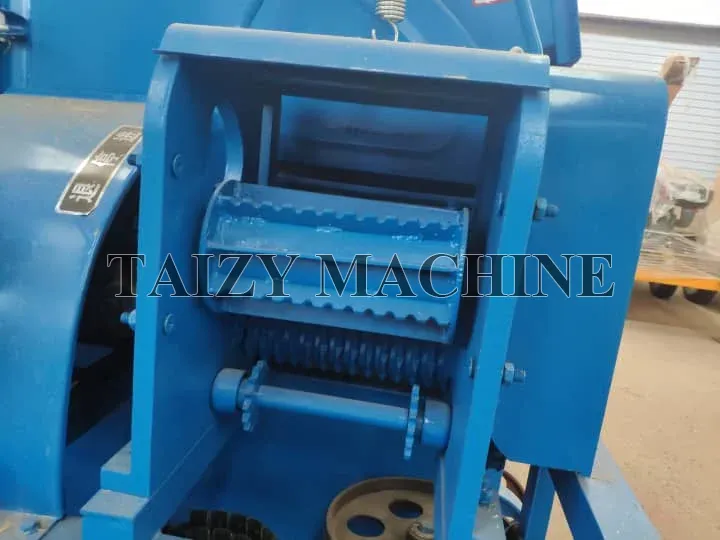

• Keep the blades sharp and replace them regularly to ensure machine cutting efficiency.
• If feeding manually, provide a stable feed and avoid overloading the machine at once. If the feed is via a conveyor belt, be careful to avoid debris clogging the system.
• Regular maintenance is crucial for extending the machine’s lifespan. Frequently checking the lubrication of the chains and bearings, as well as inspecting fasteners, is necessary.

How to choose the most suitable forage chopping machine?

When purchasing, consider the following key factors:

• Estimate the required chopping volume per hour based on feed intake.
• Before feeding, determine the feed type is hay, straw, or a mixture.
• Adjust the settings to decide the chopping length, whether short or long pieces are needed to satisfy the feeding requirements.
• Estimate your budget in advance. If it’s an imported machine, also consider transportation and installation costs.

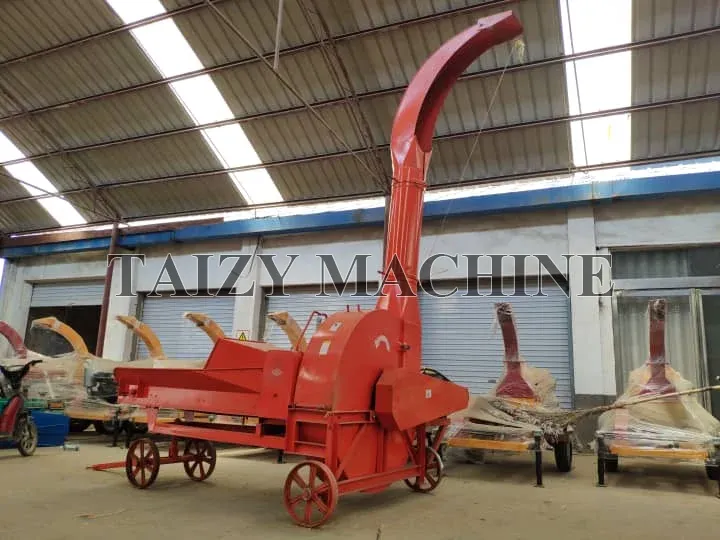

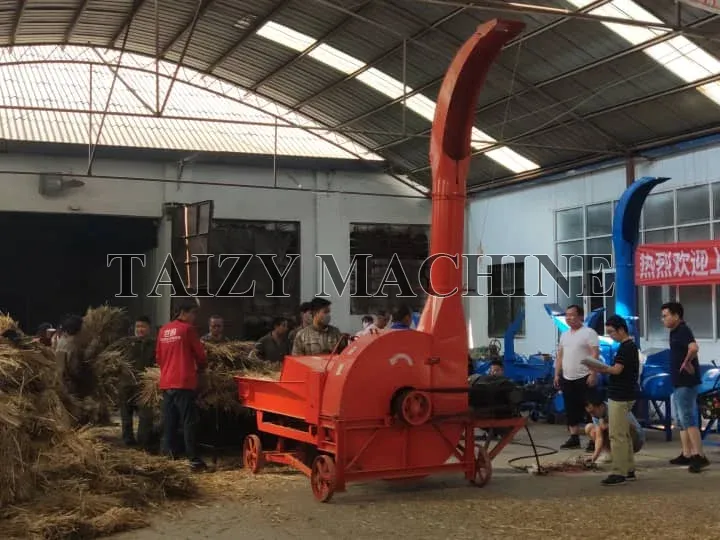

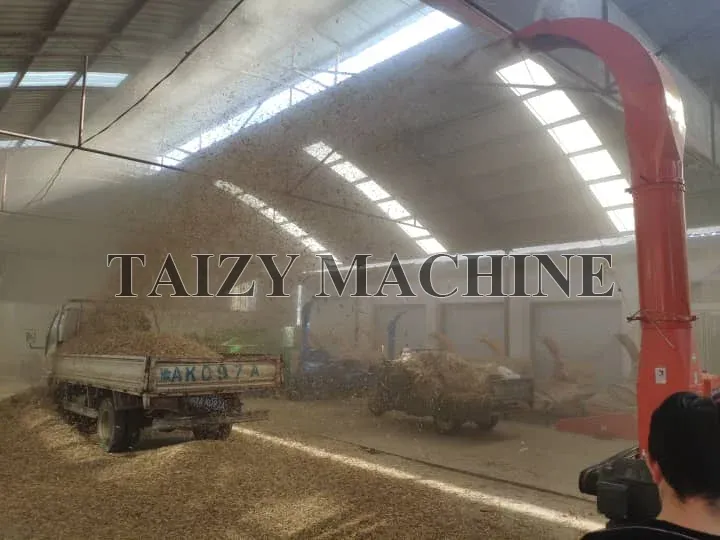

Recently, we also launched a 15A straw cutter machine with a larger capacity. Taizy is continuing to develop better products for more clients’ needs. Here are the pictures of our testing machine in one of our factories.

If you would like to find a perfect silage chaff cutter, please contact us. We will introduce you to the most suitable machine for your farm and business!

If you are interested in a small chaff cutter, please click this link: Small Chaff Cutter Machine For Cattle Feed Preparation.
