TMR Feed Mixer
Animal Feed Mixer | Silage Mixer Equipment
Model: 9JGL-4,5,7,9,12.
Capacity: 4-20m³
Auger speed: 26r/min
Power supply: 3-phase 380V, 50Hz
Auger material: Wear-resistant manganese steel
Maximum weighing capacity: 32,000kg
The TMR feed mixer is a piece of feed processing equipment that integrates cutting, crushing, and mixing functions into a single unit, helping farmers prepare a balanced Total Mixed Ration (TMR) by thoroughly mixing roughage, concentrate feed, minerals, and vitamins.
By preventing animals from sorting feed, TMR systems ensure that every bite contains the same nutrient composition, which is critical for both dairy and beef operations. This article provides a comprehensive overview of the 9JGL series TMR feed mixer, including its structure, working principle, and specifications.
Key features of Taizy TMR feed mixer
- This silage feed mixer rapidly mixes and chops various fibrous ingredients, such as hay, straw, and silage, which ensures a uniform, consistent feed blend.
- The bottom of the feed mixing tank is constructed from high-quality alloy steel, enabling it to withstand the demands of high-intensity farm operations.
- Our animal feed mixer’s cutting blades are precision-crafted from highly wear-resistant materials, thereby effectively extending the overall service life of the unit.
- A single TMR feed mixer can provide daily rations for 200 to 2,000 head of cattle; its operational efficiency is equivalent to the labor output of more than 20 workers.
Most modern livestock farms opt for livestock feed mixers due to the significant benefits they deliver:
- TMR systems reduce many mixing times and optimize energy consumption.
- It can replace numerous manual tasks, thereby substantially reducing labor requirements.
- After being mixed by machinery, feed ensures a balanced diet for animals, thereby directly promoting improvements in milk production and growth performance.

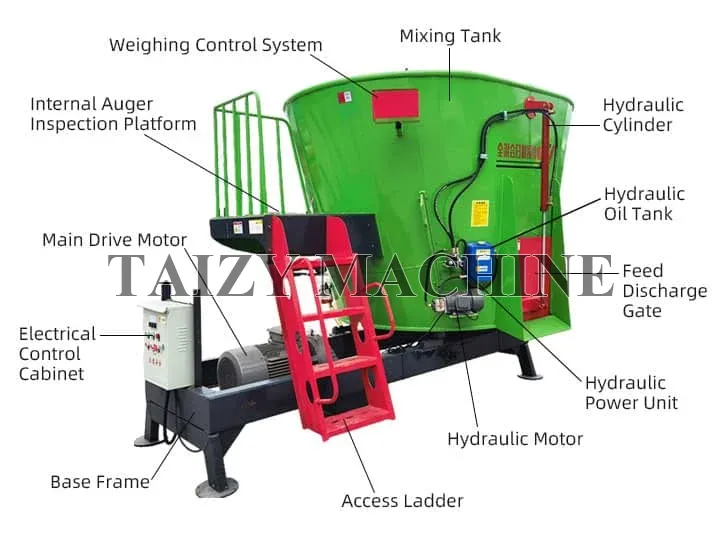

Structure of the TMR feed mixer
The main structure of the Taizy 9JGL series cattle food feed mixer comprises the following systems:
- Mixing system: It consists of one or two spiral augers, featuring spiral blades available in both left-hand and right-hand configurations. (The auger blades are manufactured from high-strength manganese steel, offering exceptional wear resistance.)
- Discharge system: The discharge gate is controlled by a hydraulic cylinder; its primary components include a fixed support base, a sliding discharge plate, and a connecting rod bracket. A magnetic plate is installed at the discharge outlet to attract and remove metallic impurities from the feed.
- Feeding system: Users can choose to install a feed conveyor (optional) to enable the automatic loading of materials into the mixing chamber.
- Weighing system: Primarily consists of four bridge-type load cells and a digital weighing controller. This system provides real-time displays of total weight, net weight, and feed ratios, thereby ensuring the precision of the feed formulation.
Working principle of the TMR silage mixer
The 9JGL Series silage feed mixer operates by utilizing a rotating auger equipped with cutting blades.
Once raw materials—such as silage, hay, straw, and concentrates—are loaded into the mixing tank, the auger begins to rotate, drawing the materials inward from both ends of the tank toward the center.
Through the synergistic action of the cutting blades mounted on the auger and the stationary blades located inside the machine, the materials undergo simultaneous cutting, shredding, and mixing during this process.
After the materials have been thoroughly mixed, the feed is discharged through a hydraulically controlled outlet.
Different types of TMR feed mixers
The TMR feed mixers supplied by Taizy are primarily categorized into two types: vertical and horizontal.

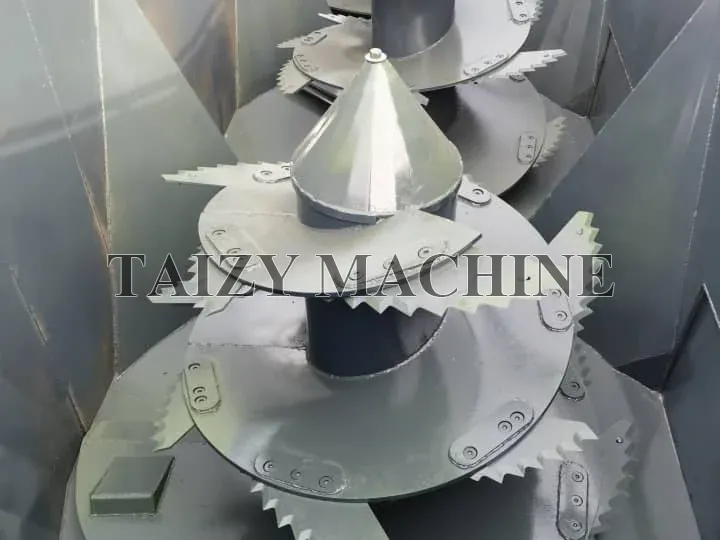

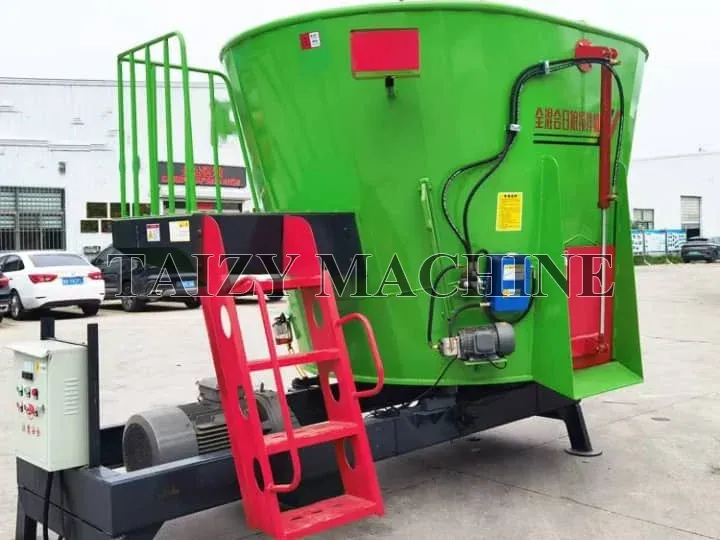

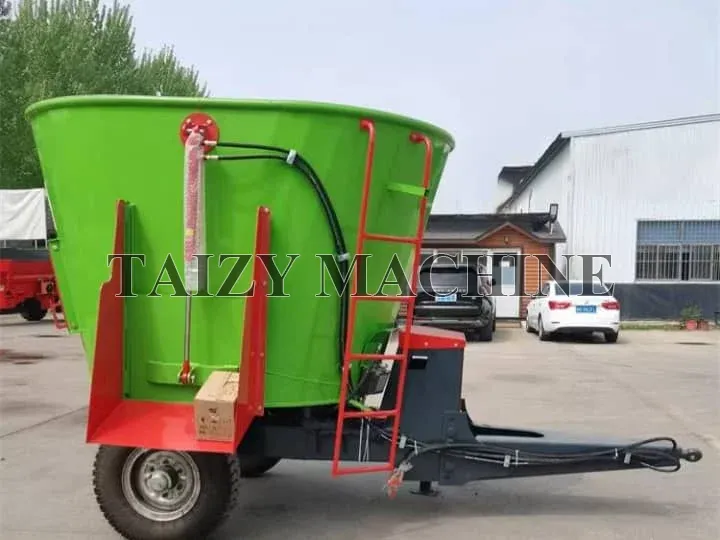

Vertical animal mixer machine
Features of vertical mixer machine for dairy cow feed:
- Low failure rate
- Simple structure
- Suitable for long-fiber materials (hay, long forage grass, oat straw, etc.)
Advantages of vertical TMR feed mixers:
- Superior mixing performance for fibrous feeds
- Longer service life
- Lower maintenance costs

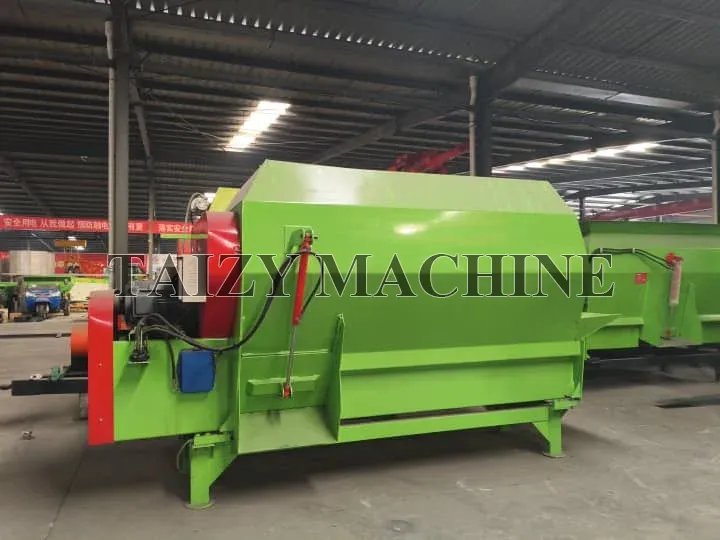

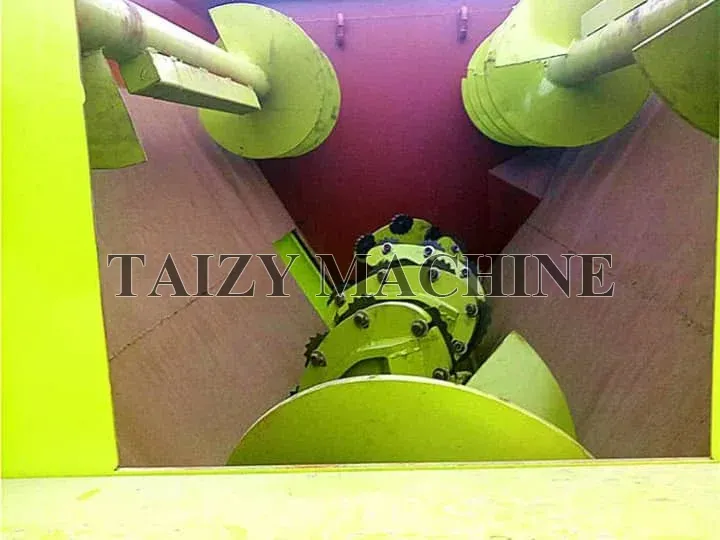

horizontal cattle food mixer
Features of horizontal animal food feed mixers:
- Faster mixing speed
- Equipped with multiple paddles or augers
- Suitable for processing soft roughage, such as silage
Advantages of horizontal livestock feed mixer:
- Rapid mixing
- Suitable for feed materials with higher moisture content
The following is the comparison table of the differences between vertical and horizontal feed mixers:
| Feature | Vertical mixer | Horizontal mixer |
|---|---|---|
| Mixing method | Spiral auger | Paddle or multi-auger |
| Best materials | Dry hay, straw, oats | Silage and moist feed |
| Structure | Simple | More complex |
| Failure rate | Lower | Slightly higher |
| Maintenance | Easy | Moderate |
Furthermore, the normal TMR mixer can also be classified based on its mobility:

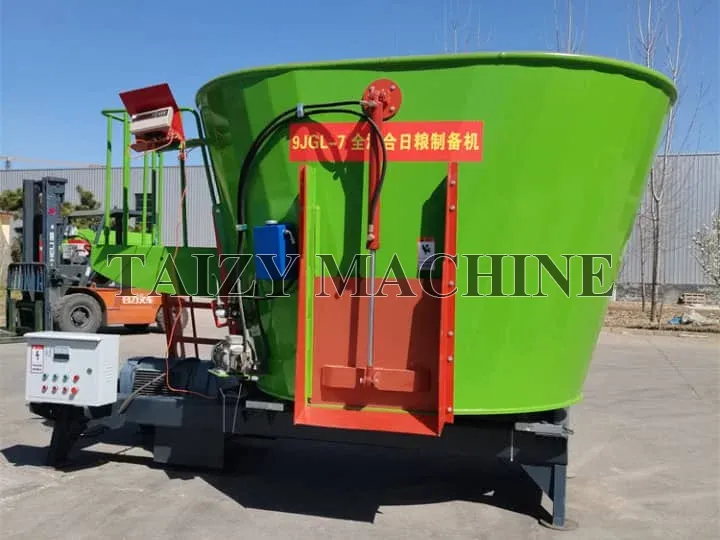

- The stationary silage feed mixer: Installed at a fixed location, suitable for automated feeding systems.

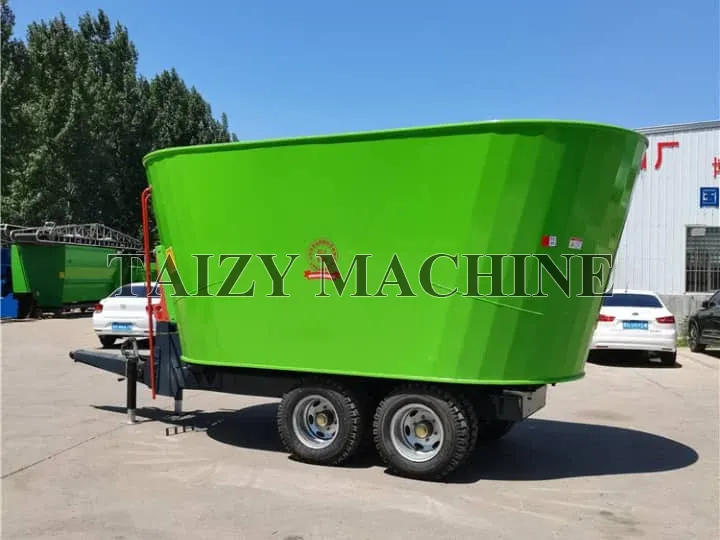

- The trailed TMR mixer: Equipped with wheels or towed by a tractor, enabling integrated mixing and feeding operations.
Models and specifications of the 9JGL series sheep feed mixer
| Model | Capacity | Power | Auger speed | Weight |
|---|---|---|---|---|
| 9JGL-4 | 4m³ | 15 + 1.5kW | 26r/min | 1620kg |
| 9JGL-5 | 5m³ | 18.5 + 1.5kW | 26r/min | 1820kg |
| 9JGL-7 | 7m³ | 22 + 1.5kW | 26r/min | 2460kg |
| 9JGL-9 | 9m³ | 30 + 1.5kW | 26r/min | 2900kg |
| 9JGL-12 | 12m³ | 37 + 1.5kW | 26r/min | 3600kg |
- Power supply: 3-phase 380V, 50Hz
- Auger material: Wear-resistant manganese steel
- Maximum weighing capacity: 32,000 kg
Besides, we also provide additional models, including 15 m³, 20 m³, and others that are also available. If you have specific requirements, please feel free to contact us for the latest information.
FAQ about TMR feed mixers
How many livestock can a single mixer feed?
Depending on the specific model, a single machine can feed anywhere from 200 to 2,000 head of cattle per day.
What types of feed ingredients can be mixed?
The common feed ingredients include: silage, hay, straw, grain feeds, and others.
Which is better: Vertical mixer vs Horizontal mixer?
The choice depends on your specific needs: Vertical mixers are generally more durable and better suited for mixing long-fiber feeds, while horizontal mixers are better suited for mixing silage and ingredients with higher moisture content.
Can this machine automatically weigh the feed?
Yes. The cow feed mixer is equipped with a digital weighing system that ensures the accuracy of the feed ratios.
How to choose the right TMR feed mixer?
When selecting a TMR feed mixer, please consider the following factors: your farm’s scale (specifically, the number of cattle or sheep), the type of feed used (hay or silage), the power source (electric or tractor-driven), and your specific mobility requirements.
